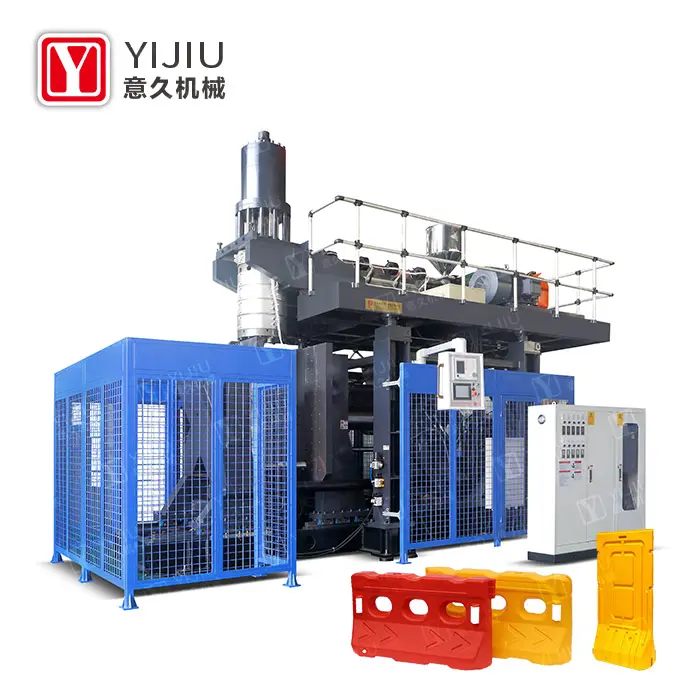

YJBA120-300L Fully Automatic Blow Moulding Machine

Fully automatic energy saving blow molding machine, with accumulator die head capacity 28L. Suitable to produce volume up to 300L, specially water bottle, oil tank, auto parts …
– Fully automatic energy saving blow molding machine, with accumulator die head capacity 28L. – Suitable to produce volume up to 300L, specially water bottle, oil tank, auto parts … – Unique 4 cylinder clamping system, stable structure, strong clamping force, stronger final products. – Adobe good quality linear guide rail, faster moving speed and lower energy cost, longer working period.
Get Quotation

YJHT100-25LII Blow Molding Machine Technical Parameter:

Main ParametersUNITYJBA120-300L
Max. Product VolumeL220
Suitable Raw Material–PE,PP
Dry CyclePCS/H250
Screw Diametermm120
Screw L/D RatioL/D32
Screw Drive PowerKw110/132
Screw Heating PowerKw36
Screw Heating ZoneZone6
HDPE OutputKg/h280-350
Oil Pump PowerKw45
Clamping ForceKn750
Mold Open Close Strokemm700-1700
Mold Template SizeW×H(mm)1300×1400
Max.Mold SizeW×H(mm)1300×1400
Die Head TypeAccumulator die head
Accumulator CapacityL28
Max.Die Diametermm580
Die Head Heating PowerKw30
Die Head Heating ZoneZone6
Blowing PressureMpa0.6
Air ConsumptionM3/Min1.8
Cooling Water PressureMpa0.3
Water ConsumptionL/Min220
Machine dimensionL×W×H(M)6.0×3.0×4.9
MachineTon30

YJBA120-300L Blow Moulding Machine Application:
